Thermocouple & Compensating Cable

Precision-Matched
Thermocouple Cables

Built by Elegar Kerpen with exact thermo-EMF characteristics for accurate temperature signal transmission.

Let's Connect View Specifications
Armoured multi-pair thermocouple compensating cable cross-section
ARMOURED THERMOCOUPLE CABLE · INDIVIDUALLY SCREENED PAIRS

Disclaimer: Cross-section shown is a representative illustration; actual product construction and dimensions may vary.

1.1kV
Max Voltage Grade
8 Types
Type R, S, B, J, T, E, K, N
0.5–2.5 sq mm
Conductor Size Range
5 Standards
IS · IEC · ASTM · ANSI

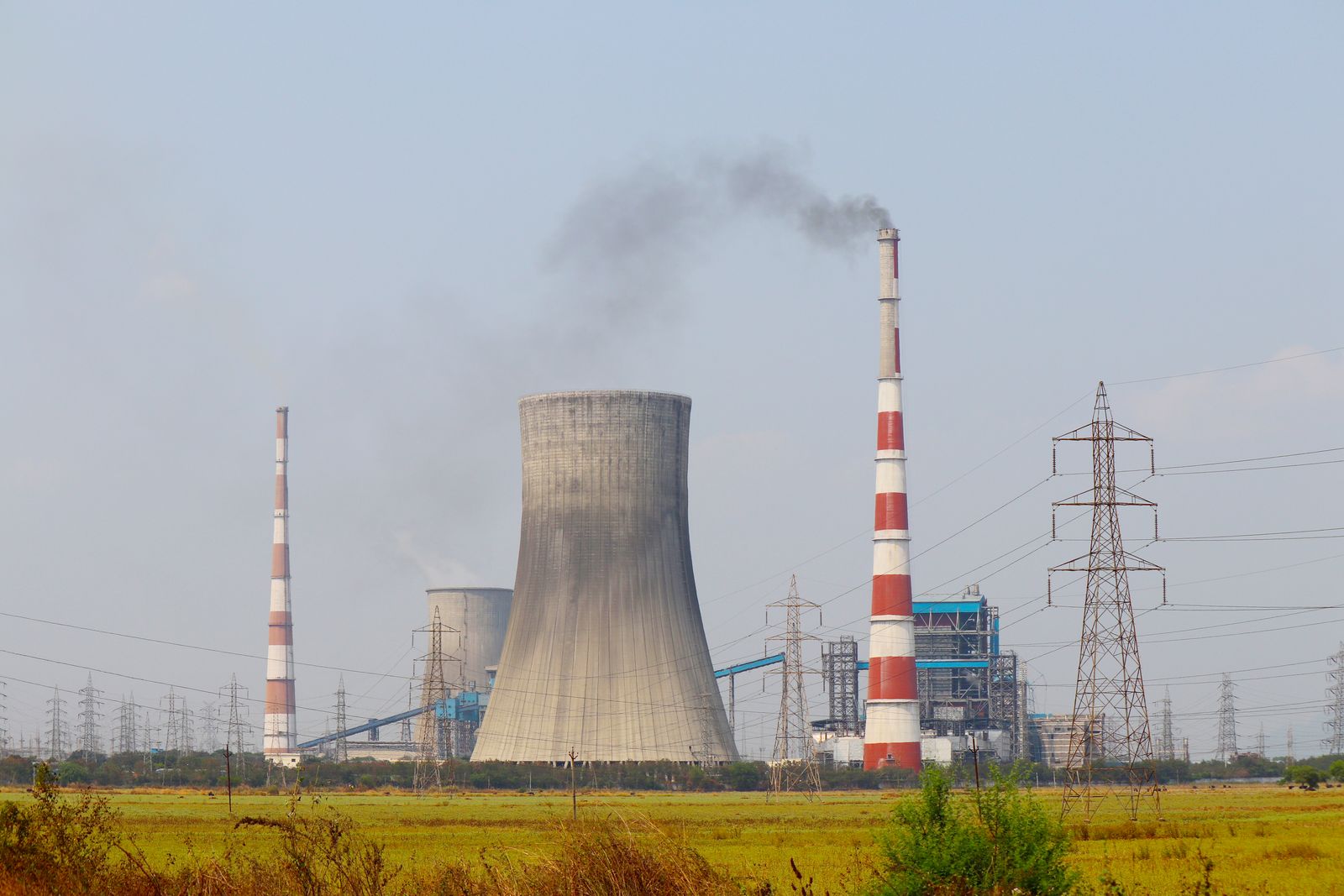

Thermal power station with cooling towers and chimneys, where thermocouple compensating cables monitor boiler and turbine temperatures
About this product

Globally Trusted Thermocouple Compensating Cables

At Elegar Kerpen, one of the most trusted wires and cables manufacturers in India, our thermocouple and compensating cables are manufactured to IS:8784, IEC 60584, ASTM E230, BS, ANSI-MC 96.1, and DIN standards. Produced at our ISO-certified facility with exact emf characteristics for every thermocouple type, they deliver cost-effective, dependable temperature measurement for power plants, chemical facilities, furnaces, and process industries across 40+ countries.

What a thermocouple compensating cable does
Thermocouple and compensating cables extend the millivolt signal from the sensing junction to control instrumentation without distorting the reading. Their conductors use alloys with matched thermo-electric properties, so the connection to pyrometers, controllers, recorders, and data acquisition systems introduces no measurable error across the rated ambient range.
Use cases

Applications of Thermocouple Compensating Cables

Serving critical temperature measurement functions across diverse industrial and process sectors.

01
Furnaces, Kilns & Heat Treatment
Monitoring furnace, kiln, and heat treatment processes in steel production, glass manufacturing, and ceramic facilities that demand high-temperature measurement accuracy.
02
Plastic Injection Moulding
Controlling barrel and mould temperatures in injection moulding machines, ensuring consistent product quality, optimised cycle times, and lower energy consumption.
03
Power Generation Plants
Measuring temperatures in boilers, turbines, generators, and heat exchangers for operational efficiency, equipment protection, and emissions monitoring.
04
Chemical & Pharmaceutical Process
Connecting sensors in reactors, distillation columns, autoclaves, and pharmaceutical processing equipment where precise temperature control ensures product quality and safety.
05
Food Processing & Cold Chain
Regulating temperatures in commercial ovens, pasteurisation equipment, refrigeration systems, and cooking processes to maintain food safety standards throughout production.
06
Aerospace & Automotive Testing
Supporting engine testing, exhaust gas monitoring, and component evaluation in aerospace and automotive applications exposed to vibration and extreme conditions.
07
HVAC & Building Systems
Enabling temperature regulation and energy management in HVAC systems for commercial and residential climate control applications.
08
Oil, Gas & Refineries
Tracking process temperatures across crackers, reformers, heaters, and storage systems in upstream, midstream, and downstream hydrocarbon facilities.
Technical data

Thermocouple Compensating Cable Construction

Full construction parameters available in our comprehensive product catalogue. Custom sizes on request from our applications engineering team.

Thermocouple Compensating Cable Construction Parameters
ConstructionSingle / Multi-Core
Voltage GradeUp to 1.1 kV
ConductorKCB/KCA, RCB/SCB, NC, BC
Type of ConductorR, S, B, J, T, E, K, N
Conductor Size0.5 sq mm to 2.5 sq mm
Conductor StrandingSolid or Multi Strand
Core InsulationPVC, XLPE, PE, Silicon
ScreeningAluminium Foil Type / Mesh Braided Type
Inner / Outer SheathPVC, LSZH, Silicon, Polyimide
ArmouringG.I. Armouring / GI Braiding (for high-temperature insulations)
Colour CodeAs per the applicable colour code table (IEC / ANSI / IS / BS / DIN)
Compliance

Thermocouple Cable Standards

IS:8784
Thermocouple Compensating
IEC 60584
Thermocouples & Tolerances
ASTM E230
Temperature-EMF Tables
ANSI MC 96.1
Thermocouple Standard
BS & DIN
International Equivalents
Product enhancements

Additional Properties

The cable can be manufactured with:

Smoke Density / FRLS / LSZH, and Light Transmission
High-temperature insulations: Silicone, PFA, Polyimide and Fibreglass
UV Resistance Properties (As per ASTM G 154 & 155, ISO 4892-2 Method A, UL 1581)
Acid, Alkali, Sulphur & Oil Resistance (as per IEC 60881-404)
Operating Temperature Rating ranging from -40°C to +105°C
MICA for Fire Survival / Resistance properties up to 950°C
Water Resistance / Water Blocking Tape and Anti-Rodent Protection
RoHS & REACH compliance
Product advantages

Why Elegar Kerpen Thermocouple Cables?

Eight measurable advantages built into every cable, from manufacturing floor to field installation.

ISO-Certified Manufacturing Excellence
Produced under ISO 9001, ISO 14001, and ISO 45001 certified processes, ensuring consistent quality, environmental responsibility, and safety standards.
Multi-Standard Compliance
Manufactured to IS:8784, IEC 60584, ASTM E230, BS, ANSI-MC 96.1, DIN, VDE, and customer-specific specifications for global project compatibility.
Advanced E-beam Technology
India's only hybrid crossfire E-beam line delivers superior insulation properties, enhanced durability, and exceptional performance in demanding environments.
Precise Thermoelectric Matching
Conductors engineered with exact EMF characteristics matching specific thermocouple types, ensuring accurate temperature signal transmission.
Cost-Effective Solutions
Optimised material selection provides excellent performance for ambient temperature applications without compromising accuracy or reliability.
Proven Global Track Record
Trusted by clients across 40+ countries in power generation, chemical processing, manufacturing, and process industries.
Customisation Capabilities
Our three-lakh square-foot facility enables tailored insulation materials, shielding configurations, and constructions for unique measurement requirements.
Robust Construction
Designed to withstand vibration, mechanical stress, moisture, and chemical exposure while maintaining signal integrity in harsh industrial environments.
Support FAQ

Frequently Asked Questions

Common technical and commercial questions about Elegar Kerpen thermocouple and compensating cables.

What is a thermocouple compensating cable?
A thermocouple compensating cable extends a thermocouple signal from the sensing point to instrumentation. It uses similar — not identical — alloys and maintains accurate temperature measurement within the ambient range at a lower cost than extension-grade thermocouple cable.
How many types of cable are there in thermocouple cables?
Thermocouple cables include extension grades (JX, KX, TX, EX, NX) and compensating types (KCB/KCA, RCB/SCB, NC, BC). They are classified by thermocouple type and temperature range, ensuring compatibility, signal accuracy, and reliable measurement in industrial applications.
What is thermocouple cable used for?
Thermocouple cable transmits millivolt signals from thermocouple sensors to controllers or recorders. It is widely used in furnaces, power plants, chemical processing, HVAC systems, plastic moulding, and food processing for accurate temperature monitoring and process control.
Is there a need for customised joints or terminations?
Yes. Proper thermocouple connectors, matching polarity, and compatible extension or compensating cable types are essential. Incorrect joints introduce measurement errors. For critical temperature monitoring systems, use thermocouple-grade terminals and follow ANSI or IEC colour coding standards.
Can I use compensating cable to make a thermocouple?
No. Compensating cable does not use the exact thermocouple alloy pair required for the Seebeck effect. It is designed only for signal transmission, not for forming a thermocouple sensing junction.
Will using compensating cable affect my temperature readings?
Slightly, if used beyond its rated ambient temperature range. Within specified conditions, compensating cable maintains acceptable accuracy for most industrial temperature measurement and process control applications.
Why not always use extension cable?
Extension cable provides better accuracy because it uses matching thermocouple alloys. However, it is more expensive. Compensating cable offers a cost-effective solution for signal transmission in moderate ambient environments.
What temperatures can PVC-insulated compensating cable handle?
PVC-insulated compensating cable typically handles ambient temperatures between 70°C and 105°C, depending on insulation grade. For higher temperatures, consider PFA, fibreglass, or silicone-insulated thermocouple cables.
How do I know which compensating cable type to buy?
Match the compensating cable to your thermocouple type. For example, a Type K thermocouple requires KCB compensating cable. Correct pairing ensures signal integrity, measurement accuracy, and reliable industrial temperature monitoring.
Do thermocouple cables need screening or shielding?
In most industrial installations, yes. Millivolt-level signals are easily corrupted by electromagnetic interference from motors, drives, and adjacent power cabling. Aluminium foil or braided screening, earthed at one end only, preserves signal integrity over long cable routes.
